25mm PVC-Coated S Hook for Tie-Down Straps

Source 25mm PVC-coated S hooks from An Thanh Tech, a cargo securing hardware manufacturer and S hook supplier in Vietnam serving international buyers. Designed for compatible 25mm tie-down assemblies, these coated steel fittings help reduce surface scuffing. Send your drawing, load requirements, export specifications and quantity for a tailored wholesale or OEM quotation.

Product Overview 25mm PVC-Coated S Hook

A 25mm PVC-coated S hook is a steel end fitting that connects a tie-down strap to a compatible anchor point. Its S-shaped profile provides an accessible attachment, while the PVC coating helps reduce scuffing where the hook contacts finished surfaces.

The 25mm designation refers to the nominal webbing size used in the assembly. It does not specify the hook opening, body diameter or overall length. These dimensions should be checked against the intended anchor and webbing attachment before ordering.

This listing is for the hook component. The suitability and rating of a finished tie-down depend on the complete assembly.

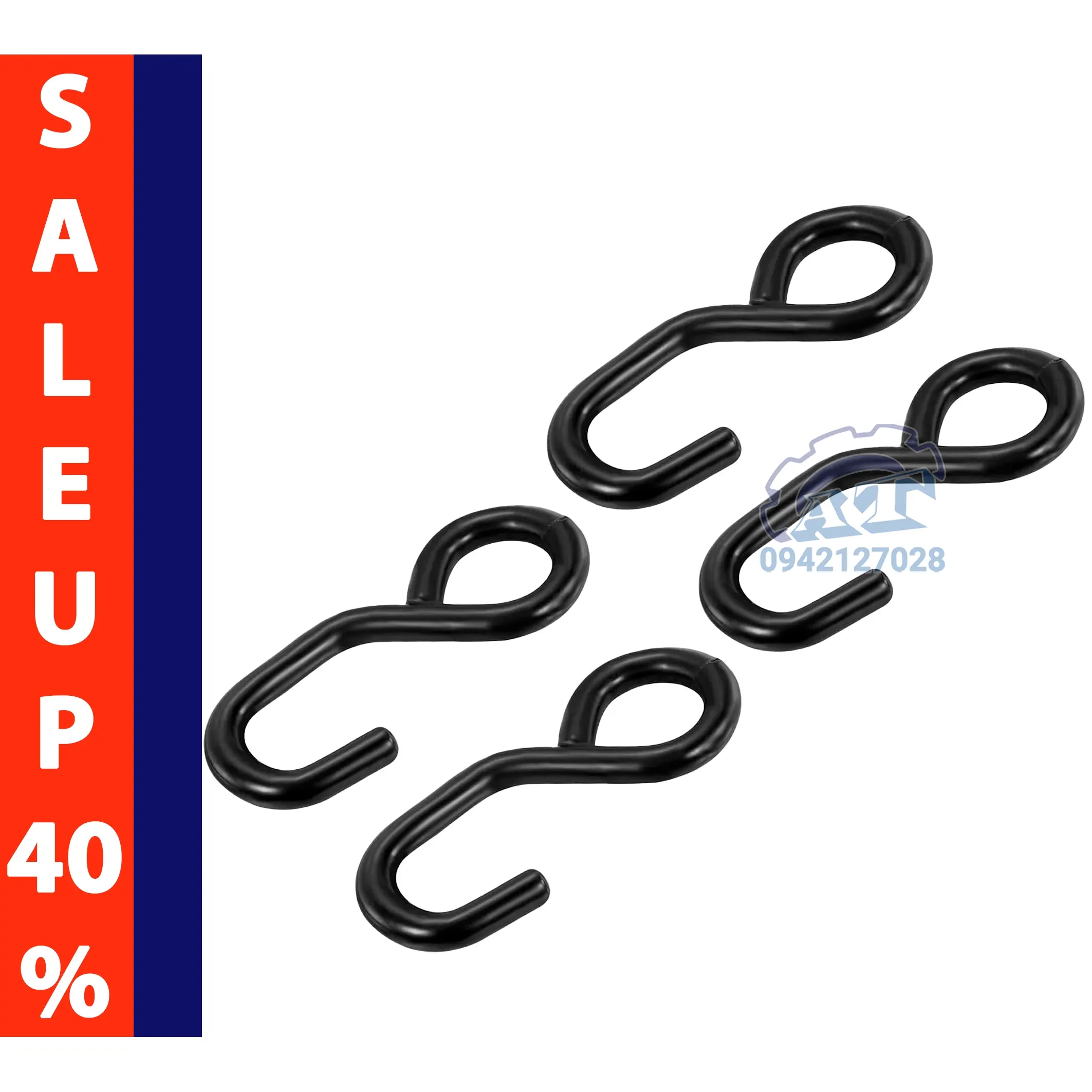

Black 25mm PVC-coated S hook for tie-down straps - An Thanh Tech

Technical Specifications

For purchasing approval, request the current drawing and load specification for the exact model being supplied.

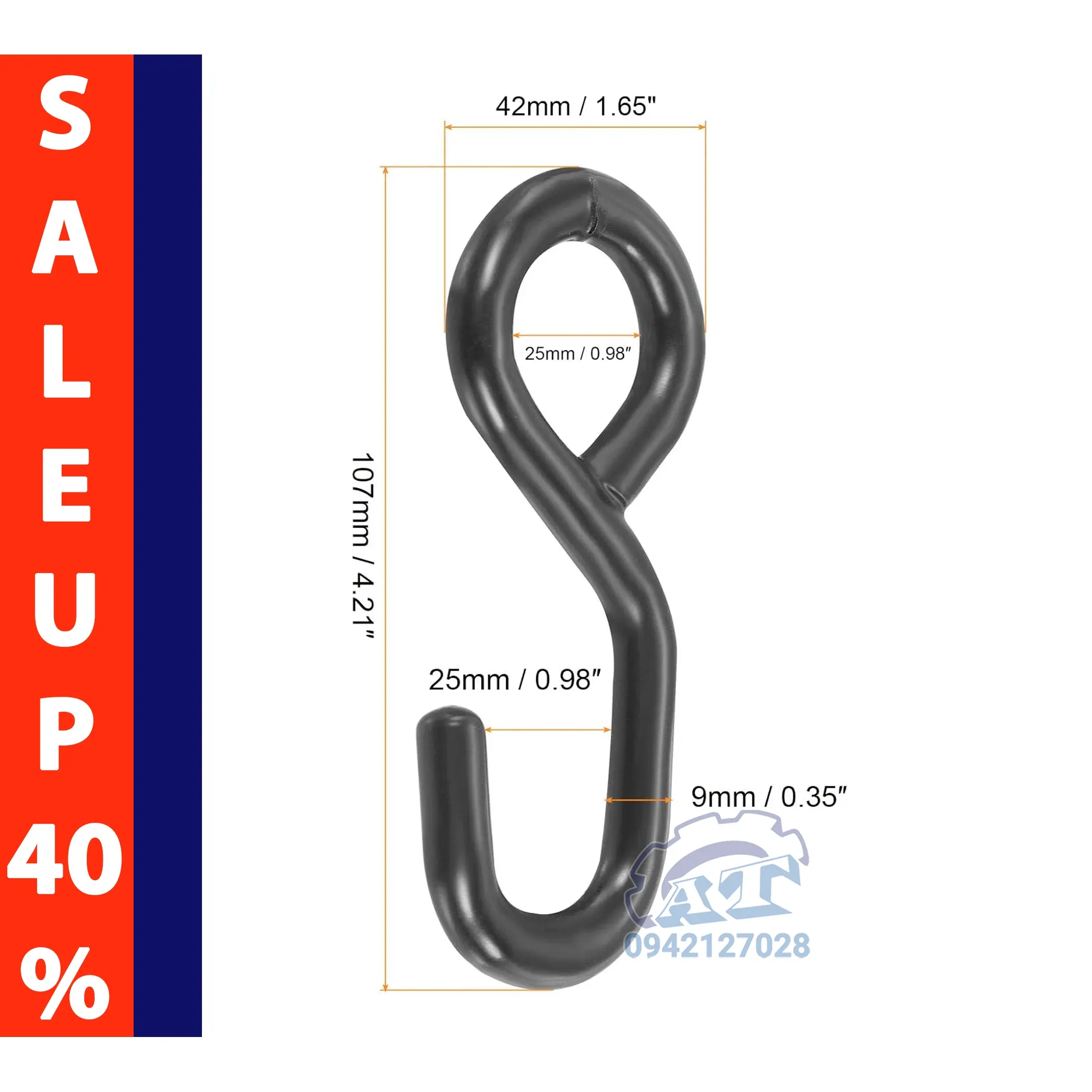

Technical drawing showing the dimensions of a 25mm S hook - An Thanh Tech

Key Features of the 25mm PVC-Coated S-Hook

(The PVC-coated S-hook is a specialized hardware component designed for quick attachment and surface protection in 25mm tie-down assemblies. Its primary features include:)

• Protective PVC Coating (Anti-Scratch): A durable PVC layer acts as a barrier between the steel hook and anchor points, minimizing direct metal-to-metal contact. This protects finished surfaces from scratches and damage (Note: Optimal protection requires keeping the coating clean and undamaged).

• Accessible S-Shaped Profile: The open, curved S-design allows for fast, thread-free attachment to compatible anchor geometries. Safety Consideration: Because it is an open hook, it does not provide positive retention. For applications requiring a secure lock, specify an S-hook with a safety keeper.

• 25mm Webbing Compatibility: Designed seamlessly for 1-inch (25mm) ratchet and cam buckle tie-down systems. For safe manufacturing, ensure the hook, webbing, and stitching strictly align with the intended assembly drawing and load requirements, rather than just matching the nominal strap width.

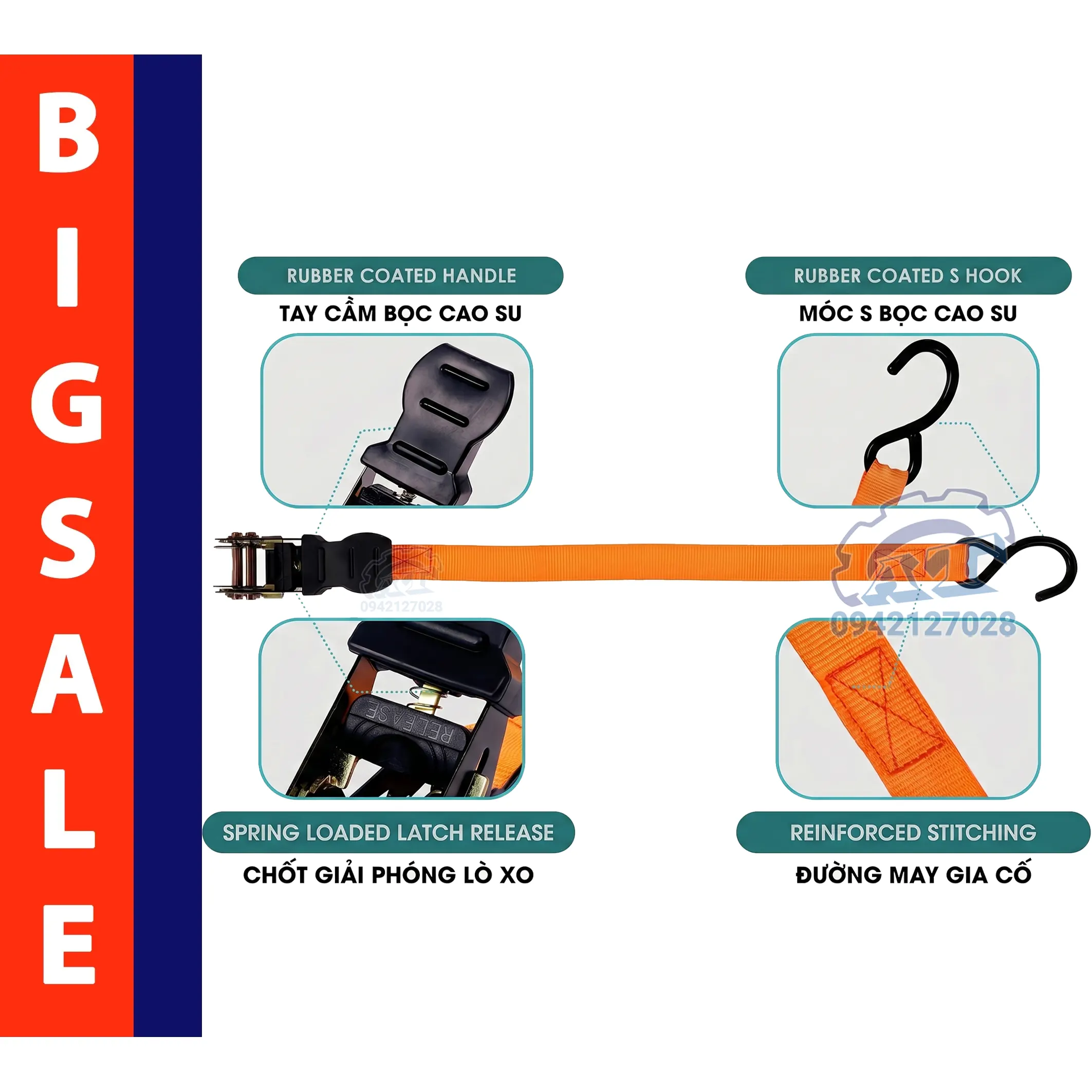

PVC-coated S hook attached to a 25mm tie-down strap - An Thanh Tech

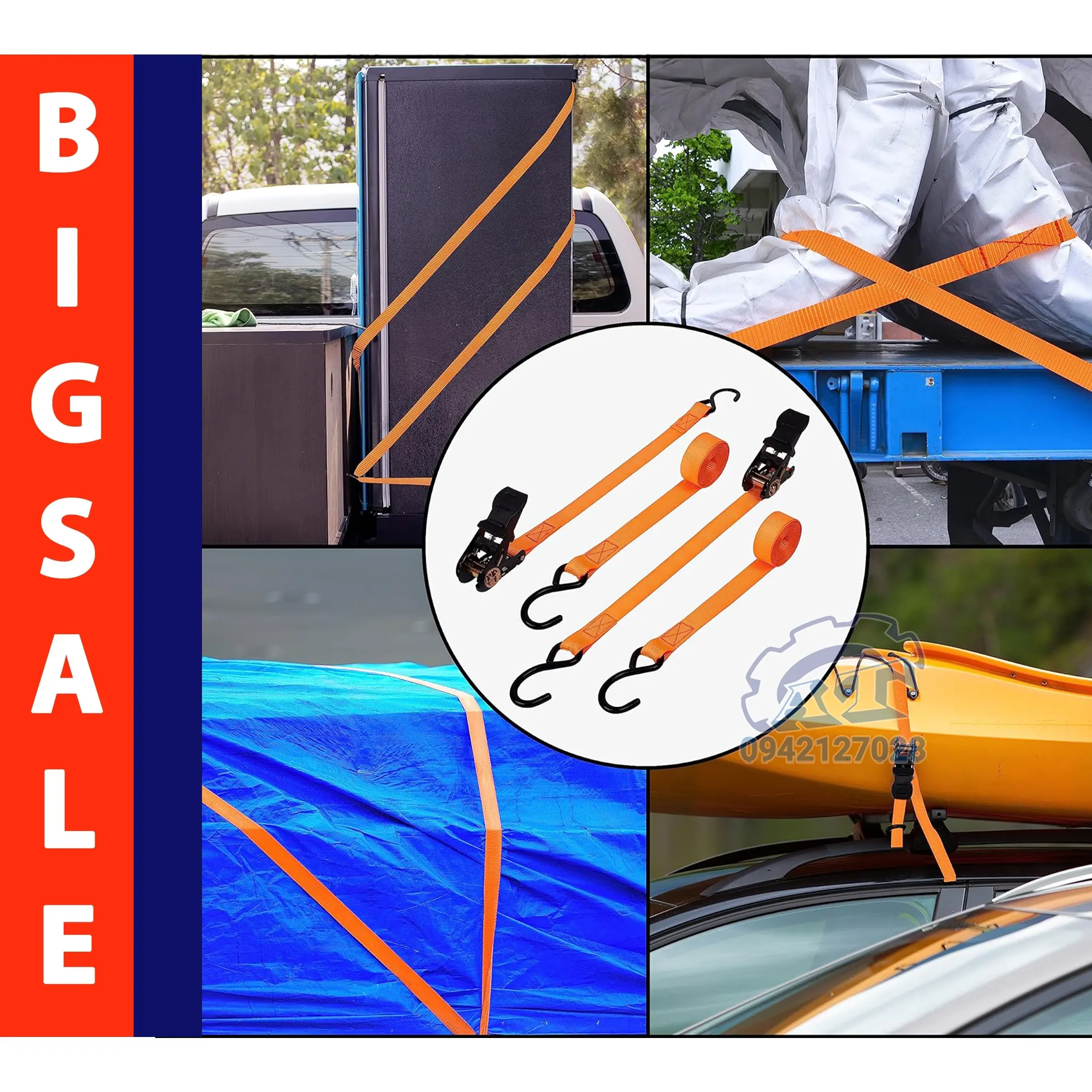

Applications

These coated S hooks are intended for buyers sourcing components for:

• Ratchet strap manufacturing: End fittings for approved 25mm ratchet tie-down designs.

• Cam buckle strap production: Hook connections for compatible webbing and buckle combinations.

• Equipment restraint: Assemblies connecting to suitable, rated anchor points.

• Hardware distribution: Individually identified components for trade and industrial customers.

• Specified replacement parts: Replacement hooks matching the original assembly manufacturer’s requirements.

Select the product according to the documented assembly requirements. A hook’s component rating is not a direct statement of the cargo weight that a single strap can secure.

PVC-coated S hooks packed for wholesale supply by An Thanh Tech

What to Check Before Ordering

1. Webbing and Attachment Dimensions

Provide the webbing width, thickness and attachment method. The webbing should fit the intended connection without folding, bunching or contacting unsuitable edges.

For buyers searching for a 1 inch coated S hook, note that one inch equals 25.4mm. Confirm actual fit rather than treating a nominal 25mm description as a dimensional guarantee.

2. Hook Opening and Anchor Fit

Compare the hook opening, internal clearance and body dimensions with the anchor point. A clear photograph with measurements can help when an anchor drawing is unavailable.

The hook should seat as intended under load. Do not select a component solely because its opening is large enough to pass over the anchor.

3. Required Load Performance

State whether your specification refers to working load limit (WLL) or breaking strength. These are different values and should be documented separately.

Ask for the applicable rating and supporting test information for the selected hook. Do not transfer a rating from another S hook with a similar appearance or nominal size.

4. Coating and Operating Conditions

Describe the intended environment, including outdoor exposure, moisture, abrasion or contact with chemicals. If coating performance is important to your application, include the relevant acceptance criteria in your enquiry.

A PVC coating should not be treated as a guarantee of permanent corrosion protection or scratch-free contact.

Bulk Supply from An Thanh Tech

An Thanh Tech manufactures and supplies cargo restraint hardware in Vietnam, including S hooks, J hooks, flat hooks, ratchet buckles and cam buckles.

For strap manufacturers and distributors, a clear purchasing specification helps keep enquiries, samples and repeat orders consistent. Reference the selected drawing, finish and performance requirements when requesting pricing.

For drawing-based enquiries, send your requirements for manufacturing review. Customisation feasibility, sample arrangements, minimum order quantity and production timing are confirmed for each project.

Information Required for a Quotation

For repeat orders, use the approved part reference and drawing revision to identify the required product.

Frequently Asked Questions

What size webbing is this S hook intended for?

It is intended for compatible 25mm webbing assemblies. Confirm the actual attachment dimensions and webbing thickness before approving the component.

Can this hook be used with 1-inch tie-down straps?

Compatibility needs to be checked. One inch is 25.4mm, while 25mm is a nominal metric size. Provide your webbing dimensions and assembly design so the fit can be reviewed.

What is the working load limit?

Request the confirmed WLL for the selected model and its supporting specification. The rating of the completed tie-down must be established separately from the hook’s individual rating.

Does the PVC coating prevent scratches?

The coating helps reduce direct metal contact and surface scuffing. It does not guarantee that scratches cannot occur, especially if the coating is worn or dirt is trapped at the contact point.

What is the minimum order quantity?

MOQ is confirmed with the quotation and depends on the selected product and any custom requirements. Include your trial order quantity and expected repeat demand when enquiring.

Can I request samples before placing a bulk order?

Include the required sample quantity in your enquiry. An Thanh Tech will confirm sample availability, cost and timing for the selected specification.

Can An Thanh Tech review a custom S hook drawing?

Yes. Submit your drawing or reference sample with dimensions, finish, load requirements and quantity. Manufacturing feasibility and commercial terms are confirmed after review.

Inspection and Use

Before use, inspect the hook for deformation, cracking, corrosion, sharp edges and coating damage. Check the attached webbing and stitching, and remove damaged components from service.

Follow the finished tie-down manufacturer’s instructions for installation, loading and inspection. This cargo restraint fitting is not intended for overhead lifting.

Request a 25mm PVC-Coated S Hook Quotation

Looking for coated S hooks for tie-down strap manufacturing or wholesale supply? Contact An Thanh Tech with your drawing or reference sample, required performance and order quantity.

Provide your delivery destination and packaging requirements so the quotation can reflect your purchasing needs.
