3 Inch Ratchet Buckle – 75mm Heavy-Duty Cargo Tie-Down Buckle
An Thanh Tech is a Vietnam-based metal hardware manufacturer supplying ratchet buckles and cargo-control components for OEM, wholesale and industrial applications. This 3 inch (75mm) ratchet buckle is designed for wider webbing used in heavy-duty tie-down systems, with custom configurations available to meet specific product requirements.
Manufacturer of 3-inch ratchet strap buckles in Vietnam
3 Inch Ratchet Buckle Specifications
| Specification | Details |
|---|---|
| Product Type | Ratchet Buckle |
| Size | 3 inch / 75mm |
| Compatible Webbing | 75mm webbing |
| Material | Steel / alloy steel according to model |
| Mechanism | Ratchet tensioning mechanism |
| Handle | Multiple configurations available |
| Surface Finish | According to specification |
| Application | Cargo securing and load restraint |
| Production | OEM / Custom |
| Supply | Wholesale / Bulk |
Load rating and breaking strength depend on the specific model and complete tie-down configuration. Contact An Thanh Tech for the applicable specification.
Designed for 75mm Webbing
A 3 inch ratchet buckle is designed to work with 75mm webbing in heavy-duty cargo-securing systems. The larger mechanism allows the operator to wind and tension the strap in a controlled manner before locking it in place.
The buckle is supplied as a hardware component. A complete tie-down assembly may additionally include webbing, hooks and other end fittings.

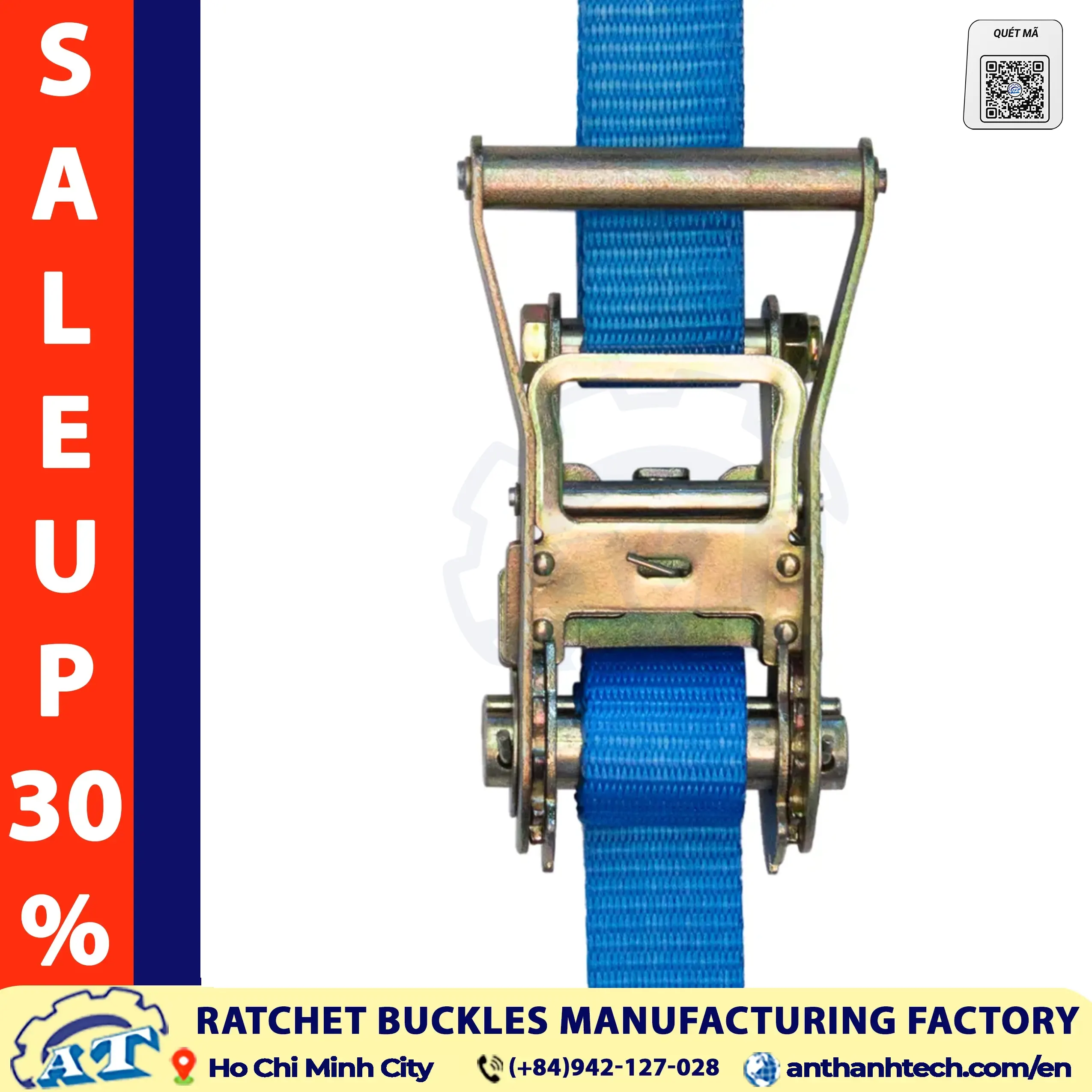

An Thanh Seatbelt Buckle Manufacturer - 3 inch ratchet buckle
Key Features
Heavy-Duty Steel Construction
The buckle is manufactured from steel or alloy steel according to the selected model and production specification. Material and surface treatment can be discussed for different operating environments.
Controlled Tensioning
The ratchet mechanism allows the webbing to be tightened progressively, helping maintain the required tension during cargo securing.
75mm Compatibility
The 3 inch format is suitable for systems using wider 75mm webbing and is commonly selected for demanding transportation and industrial applications.
Configurable Design
Handle configuration, dimensions, surface treatment and other details can be adapted for OEM projects where the standard product does not meet the required specification.
Applications
This hardware can be integrated into tie-down systems for:
-
Heavy machinery
-
Construction equipment
-
Industrial cargo
-
Truck and trailer transportation
-
Logistics and freight
-
Large metal products
-
Equipment transportation
-
Heavy-duty load restraint
The buckle, webbing and end fittings should be selected as a complete system according to the cargo and required load rating.

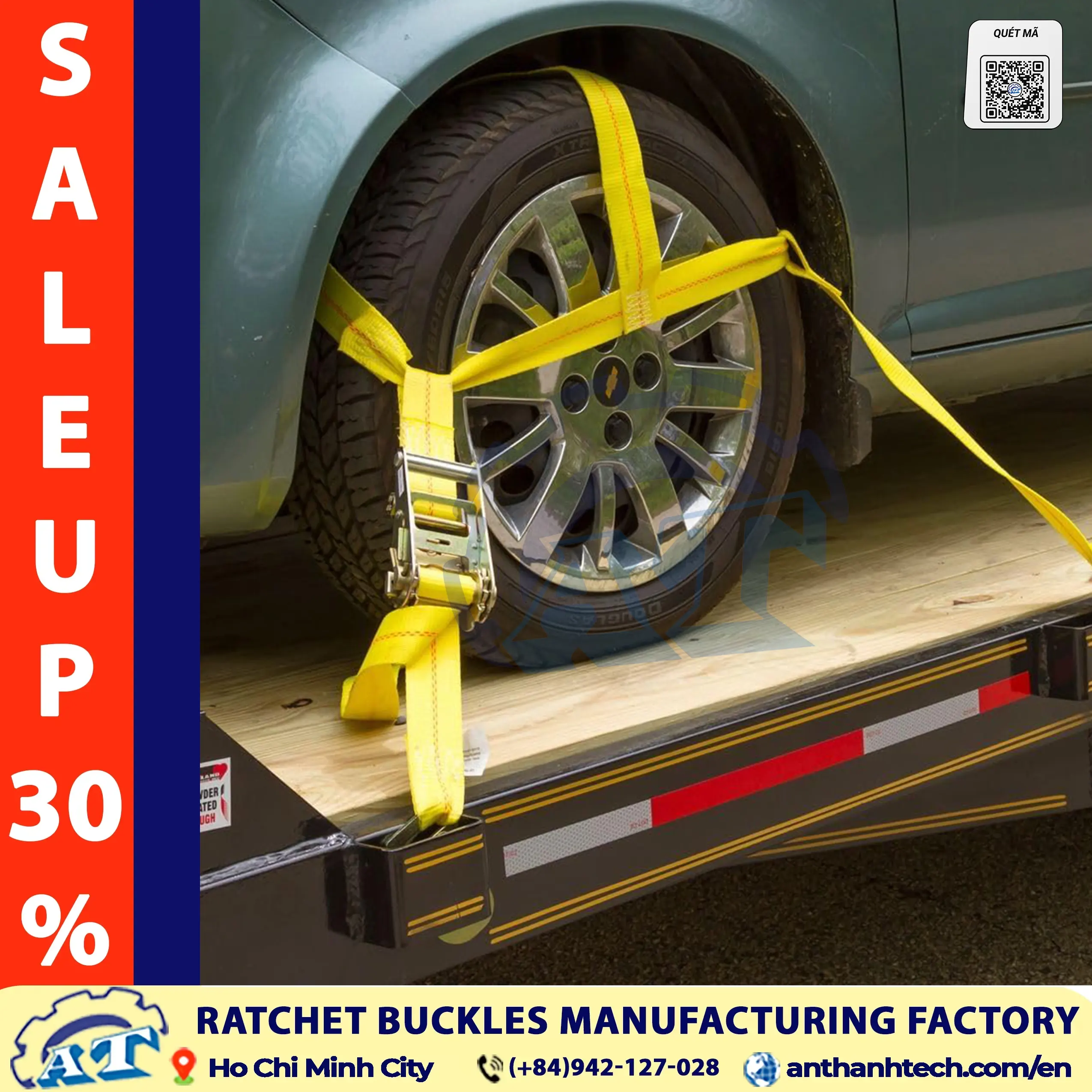

3 inch ratchet buckle 75mm heavy duty cargo tie down buckle - AnThanhTech
How Does It Work?
The operating principle is simple:
Insert → Wind → Tension → Lock → Release
-
Insert the webbing through the buckle.
-
Operate the handle to wind the webbing.
-
Continue until the required tension is reached.
-
Close the mechanism to secure the strap.
-
Fully release the mechanism before removing the webbing.
Inspect the buckle and webbing before use. Components showing damage, deformation or excessive wear should be replaced.
How to Choose the Right Configuration
Before ordering, buyers should confirm several technical details.
Webbing width: The buckle should match the actual strap width. This model is designed for 75mm webbing.
Load requirements: Confirm the required Working Load Limit (WLL) and Breaking Strength (BS) for the complete tie-down system.
Material: Select the appropriate steel specification according to the application and production requirements.
Surface finish: The finish should be suitable for the intended environment and corrosion exposure.
Handle design: Different handle configurations can provide different operating characteristics and leverage.
OEM requirements: Custom dimensions, marking, packaging and other specifications can be reviewed before production.
3 Inch vs. 2 Inch Ratchet Buckle
| Feature | 2 Inch | 3 Inch |
|---|---|---|
| Webbing width | 50mm | 75mm |
| Hardware size | 50mm system | 75mm system |
| Typical use | Heavy cargo | Heavy-duty applications |
The 3 inch version is primarily selected when the tie-down system requires wider 75mm webbing.
OEM & Custom Manufacturing
An Thanh Tech supplies ratchet hardware to manufacturers, distributors and private-label brands. As an OEM metal hardware manufacturer, we can review drawings, samples or technical specifications before production.
Depending on the project, customization may include:
-
Dimensions
-
Handle configuration
-
Material
-
Surface finish
-
Logo or marking
-
Packaging
-
Webbing compatibility
For repeat production, specifications can be established and maintained according to the approved sample or drawing.
Quality Control
Production quality can be controlled according to the agreed technical specification.
Typical inspection points include:
-
Material verification
-
Dimensional inspection
-
Surface inspection
-
Mechanism operation
-
Assembly inspection
-
Load testing according to specification
-
Final inspection
For OEM projects, specific inspection and testing requirements can be confirmed before mass production.
Ratchet Buckle vs. Ratchet Strap
A ratchet buckle is the mechanical component used to tension and lock the webbing.
A ratchet strap is a complete cargo-securing assembly that normally combines the buckle, webbing and end fittings.
If you require the hardware only, specify the buckle size and configuration. If you require a complete tie-down product, provide the required webbing, fittings and load specifications.
Part of the Ratchet Buckle Range
The 3 inch model is part of An Thanh Tech's ratchet buckle product range, which includes different sizes for various webbing and cargo-securing requirements.
Available sizes include:
-
1 Inch Ratchet Buckle – 25mm
-
1.5 Inch Ratchet Buckle – 38mm
-
2 Inch Ratchet Buckle – 50mm
-
3 Inch Ratchet Buckle – 75mm
Selecting the correct size should be based on webbing width, load requirements and the design of the complete tie-down system.
Why Choose An Thanh Tech?
An Thanh Tech manufactures metal hardware and cargo-control components for B2B customers. Our production supports standard and custom requirements for manufacturers, distributors, importers and private-label brands.
Customers can provide a drawing, sample or specification for product review, quotation and production planning.
Looking for a 75mm ratchet buckle for your cargo-control product? Send your drawing or requirements to An Thanh Tech for a quotation.
Frequently Asked Questions
What size webbing does a 3 inch ratchet buckle use?
It is designed for 75mm (3 inch) webbing.
What is a 3 inch ratchet buckle used for?
It is used as a tensioning component in heavy-duty cargo-securing, transportation and industrial tie-down systems.
Is the buckle supplied with webbing?
The buckle is a hardware component. Webbing and end fittings can be supplied or configured separately depending on the project.
Is a 3 inch ratchet buckle the same as a ratchet strap?
No. The buckle is the tensioning hardware, while a ratchet strap is the complete assembly.
Can An Thanh Tech customize this product?
Yes. Dimensions, handle configuration, material, finish, marking and packaging can be discussed for OEM and custom projects.
What is its load capacity?
Capacity varies according to the specific model and complete system configuration. The applicable WLL and Breaking Strength should be confirmed for the exact product before use.
