Cam Buckle Straps | Cambuckle Tie-Down Strap

The premium Cam Buckle from An Thanh is a highly efficient, reliable, and user-friendly solution engineered for securing light to medium cargo globally. Designed with a precise, spring-loaded thumb mechanism, this buckle optimizes strapping speed while preventing the over-tightening of fragile loads.

With over 15 years of industrial manufacturing expertise, An Thanh Tech OEM/ODM Mechanical Processing Workshop crafts every cam buckle to meet strict international safety standards, making them the preferred choice for commercial logistics, flatbed trailers, and powersports transport.

Cam buckle in a tie-down setup

1. Technical Specifications & Material Grades

To ensure maximum safety and structural integrity in harsh environments, An Thanh utilizes rigorous metallurgical standards for all components:

• Available Webbing Widths: Precision-engineered for industry-standard straps ranging from 1-inch (25mm) to 2-inch (50mm).

• Material Composition: Corrosion-resistant Die-Cast Zinc Alloy, Heavy-Duty Stainless Steel 304, or impact-resistant industrial polymers.

• Working Load Limit (WLL): Rated for working loads up to 333 lbs - 1,000 lbs, with a Breaking Strength (BS) safety factor of 3:1 matching international DOT regulations.

• Clamping Mechanism: Aggressive, oil-quenched steel teeth designed to grip polyester and polypropylene webbing without causing fiber abrasion.

Deep Dive: The Metallurgy and Mechanical Design Behind An Thanh’s Grip

Not all cam buckles are cast equal. The reliability of a tie-down strap depends entirely on the dynamic friction between the webbing and the buckle’s pivoting pressure pad.

• Aggressive Tooth Profile: An Thanh utilizes a proprietary, oil-quenched casting mold that creates sharper, deeper teeth at a specific 45-degree engagement angle. This precise geometry bites securely into the strap under tension without fraying the polyester fibers.

• Heavy-Duty Torsion Springs: While cheap alternatives use thin wire springs that fatigue over time, our assemblies integrate high-tensile Stainless Steel music wire springs. This guarantees consistent downward clamping pressure over thousands of open-close cycles, maintaining a secure lock even under structural highway vibrations.

2. Cam Buckles vs. Ratchet Buckles: Which One Do You Need?

Choosing the wrong tie-down hardware can damage cargo or compromise transit safety. Here is a technical breakdown:

Close up of the cam buckle’s sturdy construction

3. Key Industrial Benefits of An Thanh Cam Buckles

• Anti-Slip Lock Security: The spring-loaded cam mechanism features specialized teeth that lock instantly under tension, completely eliminating strap slippage during highway vibrations.

• All-Weather Corrosion Resistance: Coated with professional zinc plating or black e-coat to withstand saltwater, heavy rain, and prolonged UV exposure.

• Ergonomic Quick Release: Designed with an enlarged thumb-press tab for seamless, one-handed operation—even when wearing heavy industrial work gloves.

• Cost-Efficient Fleet Operations: High mechanical durability reduces replacement cycles, lowering the total cost of ownership (TCO) for logistics companies.

4. Environmental Material Guide: Zinc Alloy vs. Stainless Steel vs. E-Coat

Sourcing the correct hardware surface treatment prevents catastrophic oxidization and premature strap failure. Match your operational environment with our material grades:

1. Die-Cast Zinc Alloy (Standard): Best for general logistics, enclosed box trucks, and dry-climate utility transport. Highly cost-effective with moderate corrosion protection.

2. Black E-Coated Steel (Industrial Grade): Features an electronically applied paint finish that offers superior scratch resistance and UV shielding. Ideal for open flatbed trailers and powersports transport exposed to highway debris.

3. Stainless Steel 304 / 316 (Marine Grade): Ultimate resistance to salt-water pitting and acid rain. An absolute necessity for offshore marine transport, kayak tie-downs, and coastal logistics hubs.

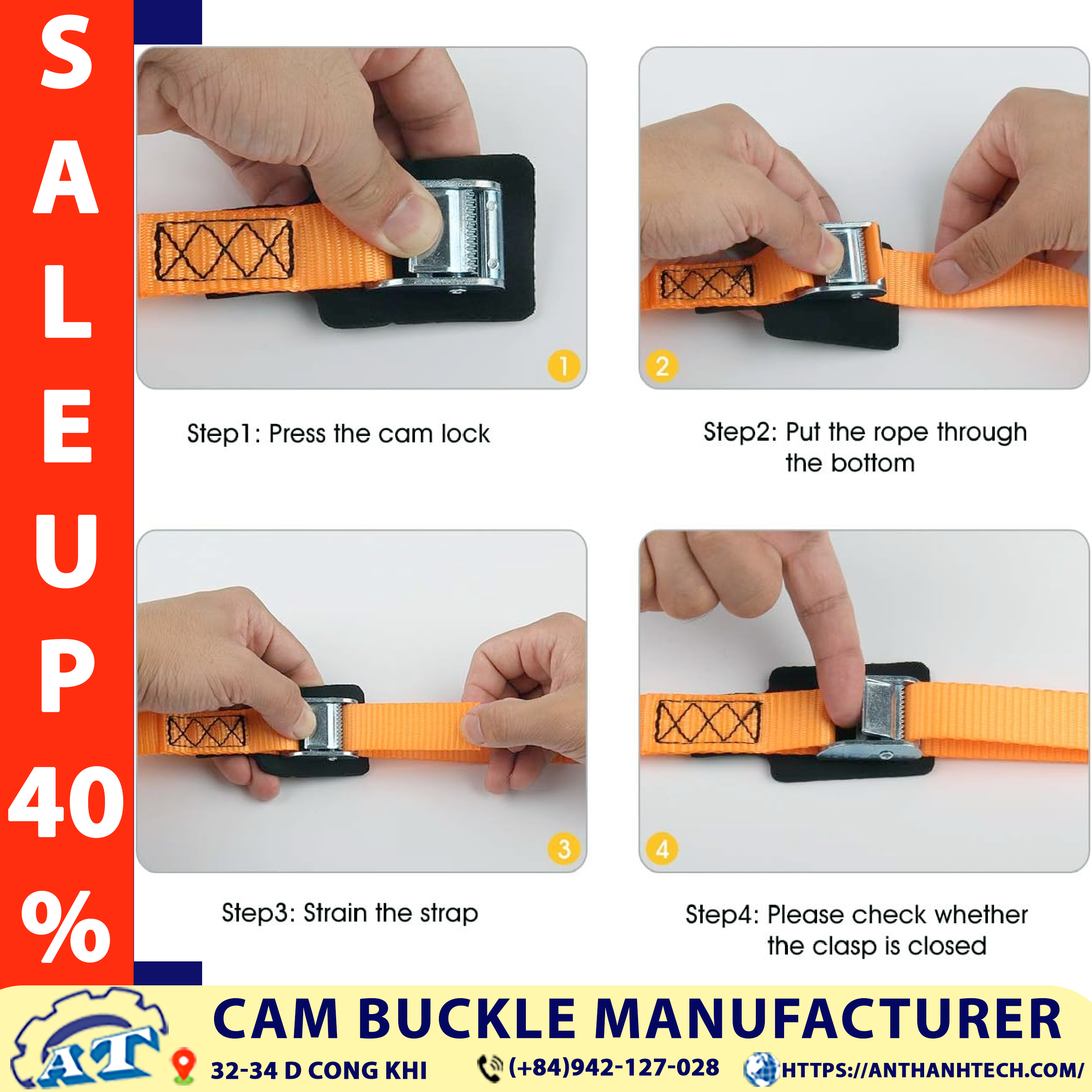

5. Step-by-Step Guide: How to Thread & Secure a Cam Buckle

Improper threading is the leading cause of tie-down failure. Follow this standard operating procedure:

1. Anchor the Hooks: Secure the strap end-fittings (S-Hooks, J-Hooks, or E-Track clips) to certified vehicle tie-down points.

2. Depress the Lever: Press down firmly on the spring-loaded thumb tab to open the internal gap between the rolling barrel and the cam teeth.

3. Thread from the Bottom: Always insert the loose end (tail) of the webbing from the bottom side of the buckle up through the teeth. (Note: Threading from the top will cause the strap to slip).

4. Tension Manually: Pull the strap flat and tight until the load is immobilized.

5. Tail Management (Pro Tip): Neatly roll up and tie down any excess webbing tail to prevent it from flapping in the wind during transport, which causes friction wear.

6. Global B2B Pricing Guide & Supply Chain Estimates

Estimated wholesale pricing for bulk procurement. Final FOB/CIF quotes depend on exact hardware dimensions, customized platings, and order volumes.

7. Industrial Safety Protocols: Inspection & Retirement Criteria

In compliance with global transport safety boards (such as the WSTDA), cargo hardware must be inspected before every trip. Remove a cam buckle system from service immediately if you detect any of the following:

• Frame Distortion: Any visible bending, cracking, or elongation of the main buckle frame or the pivoting lever.

• Spring Fatigue: If the thumb lever does not instantly snap back into the locked position when released.

• Milling Wear: Smooth or rounded-down teeth that can no longer bite into the webbing effectively.

• Chemical Damage: Severe rust scaling or chemical pitting that compromises the structural thickness of the metal alloy.

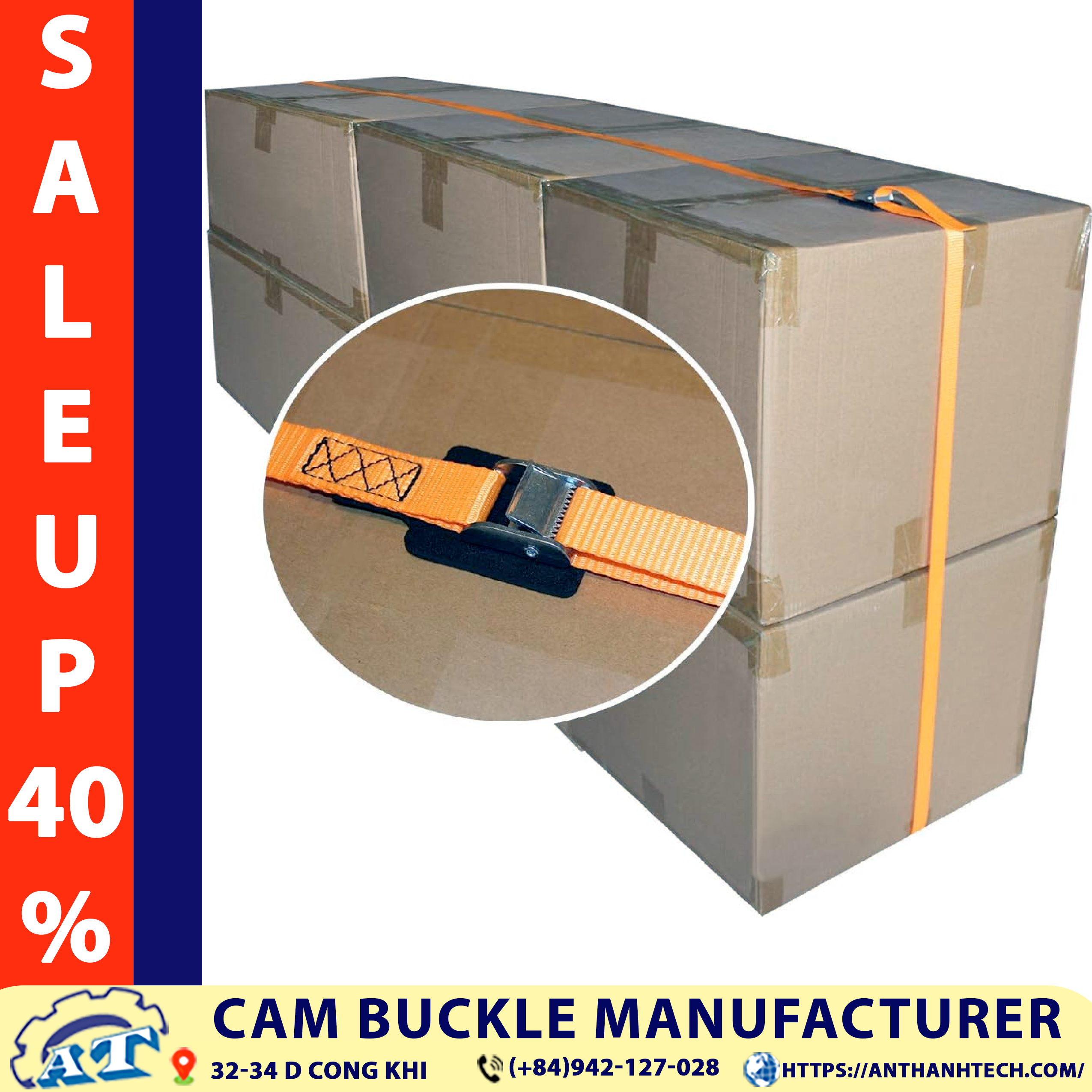

Cam buckle securing cargo worldwide

8. Why Partner with An Thanh?

When sourcing safety-critical cargo control components, structural traceability is paramount:

• 15+ Years of Proven Industry Expertise: Our advanced manufacturing facility specializes exclusively in industrial tie-down hardware and cargo lashing systems.

• Strict Quality Control & Batch Testing: Every production run undergoes rigorous tensile strength testing to guarantee rated break strengths.

• Reliable Global Logistics Hub: Seamless export processing with 24/7 supply chain support to North America, Europe, Asia-Pacific, and Africa.

• Full OEM/ODM Engineering Capabilities: We work directly with your blueprints to customize spring tension, tooth profiles, and brand engraving.

Global B2B Client Testimonials

⭐️⭐️⭐️⭐️⭐️ "An Thanh's custom 1-inch stainless steel cam buckles passed our saltwater spray tests with zero corrosion. Their shipping times to our US distribution centers are incredibly reliable."

— Mr. Liam, Supply Chain Director (Logistics Firm, USA)

9. Frequently Asked Questions (FAQs)

What is the Working Load Limit (WLL) of a 1-inch cam buckle?

An Thanh's standard 1-inch zinc-plated cam buckle features a Working Load Limit (WLL) of 333 lbs and a maximum breaking strength of 1,000 lbs. Always ensure your cargo weight does not exceed the cumulative WLL of your straps.

Can you manufacture cam buckles with custom branding?

Yes. We offer comprehensive OEM services, including custom brand logo engraving directly onto the metal lever, custom powder coating colors, and specialized packaging for retail.

What shipping options are available for international bulk buyers?

We support Express Air Freight (3-7 business days) for urgent stock replenishment and cost-effective Ocean Freight (FCL/LCL) for high-volume container orders.
